As a trusted ACP cladding supplier, ensuring the quality of our products before installation is of utmost importance. This not only guarantees the longevity and performance of the cladding but also enhances the overall aesthetic and structural integrity of the building. In this blog post, I will share some essential steps and considerations on how to check the quality of ACP cladding before installation.
1. Visual Inspection
The first step in checking the quality of ACP cladding is a thorough visual inspection. This can reveal many potential issues right from the start.
Surface Appearance
- Scratches and Dents: Carefully examine the surface of the ACP panels for any scratches, dents, or other physical damages. Even minor scratches can compromise the protective coating and lead to corrosion over time. For instance, a scratch on the PVDF coating can expose the aluminum core to moisture and oxygen, accelerating the corrosion process.
- Color Consistency: Check that the color of the panels is consistent throughout the batch. Any significant color variations can be a sign of poor manufacturing processes or improper pigment mixing. This is especially important for large - scale projects where a uniform appearance is crucial.
- Gloss and Finish: The gloss level of the ACP should be uniform and match the specified requirements. A dull or uneven finish may indicate problems with the coating application.
Edge Quality
- Smoothness: The edges of the ACP panels should be smooth and free from burrs or rough spots. Rough edges can not only affect the installation process but also pose a safety hazard to the installers.
- Straightness: Ensure that the edges are straight. Crooked edges can make it difficult to install the panels properly, resulting in gaps or misalignments in the cladding system.
2. Measuring Dimensions
Accurate dimensions are essential for a proper fit during installation. Any deviations from the specified dimensions can lead to installation problems and affect the overall performance of the cladding.
Panel Size
- Length and Width: Use a measuring tape to check the length and width of the ACP panels. The dimensions should match the specifications provided by the manufacturer. For example, if you have ordered 4'x8' Aluminum Composite Panel, the panel should measure approximately 4 feet by 8 feet with a tolerance within the acceptable range.
- Thickness: Measure the thickness of the panel at multiple points using a caliper. Consistent thickness is important for the structural integrity of the cladding. A panel that is too thin may not provide adequate strength, while a panel that is too thick can be heavier and more difficult to install.
Tolerance Checks
- Flatness: Check the flatness of the panel by placing a straightedge across the surface. There should be minimal gaps between the straightedge and the panel. Excessive curvature or warping can cause problems during installation and may indicate issues with the manufacturing process.
3. Testing the Core Material
The core material of ACP cladding plays a crucial role in its performance. Different core materials have different properties, and it is important to ensure that the core meets the required standards.
Core Composition
- Material Type: Confirm the type of core material used in the ACP. Common core materials include polyethylene (PE), fire - retardant polyethylene (FR - PE), and mineral - filled cores. Each material has its own advantages and disadvantages, and the choice depends on the specific application and fire safety requirements.
- Homogeneity: The core material should be homogeneous throughout the panel. Any signs of inhomogeneity, such as lumps or voids, can affect the strength and stability of the panel.
Fire Resistance
- Testing: If fire resistance is a requirement for your project, it is important to test the ACP panels for their fire - rating. This can be done through third - party testing laboratories. ACP panels with a high fire - rating are suitable for applications in high - rise buildings, commercial complexes, and other areas where fire safety is a concern.
4. Adhesion Testing
The adhesion between the aluminum skins and the core material is critical for the performance of the ACP cladding. Poor adhesion can lead to delamination, which can compromise the structural integrity of the panel.
Cross - Cut Test
- Procedure: Use a sharp blade to make a series of parallel cuts on the surface of the panel, followed by a series of perpendicular cuts to form a grid pattern. Then, apply a piece of adhesive tape over the grid and pull it off quickly. If a large amount of the coating or the aluminum skin comes off with the tape, it indicates poor adhesion.
- Acceptance Criteria: The amount of coating or skin removed should be within the acceptable limits specified by the manufacturer.
5. Chemical and Physical Property Testing
In addition to the above - mentioned tests, some projects may require more in - depth chemical and physical property testing.
Weather Resistance
- UV Resistance: ACP cladding is often exposed to sunlight, so it is important to test its UV resistance. This can be done through accelerated weathering tests in a laboratory. Panels with good UV resistance will not fade or degrade significantly over time.
- Moisture Resistance: Test the panel's resistance to moisture by exposing it to a controlled humid environment. Panels that absorb excessive moisture can swell, warp, or develop mold, which can affect their performance and appearance.
Mechanical Properties
- Tensile Strength: Measure the tensile strength of the ACP panel to ensure that it can withstand the forces applied during installation and use. A panel with low tensile strength may break or tear under stress.
- Flexural Strength: Test the flexural strength of the panel by applying a load at the center of a supported panel. The panel should be able to withstand the specified load without excessive deflection or cracking.
6. Documentation and Certification
Finally, it is important to check the documentation and certification provided by the manufacturer.
Product Specifications
- Read the Manual: Carefully read the product manual provided by the manufacturer. It contains important information about the panel's properties, installation instructions, and maintenance requirements.
- Verify Specifications: Ensure that the panel you have received meets all the specifications outlined in the manual.
Certifications
- Quality Certifications: Look for quality certifications such as ISO 9001, which indicates that the manufacturer has a quality management system in place. Other certifications, such as fire - rating certifications or environmental certifications, may also be relevant depending on your project requirements.
In conclusion, checking the quality of ACP cladding before installation is a multi - step process that requires careful attention to detail. By following these steps, you can ensure that the ACP panels you install are of high quality, which will not only enhance the appearance of the building but also provide long - term performance and durability.

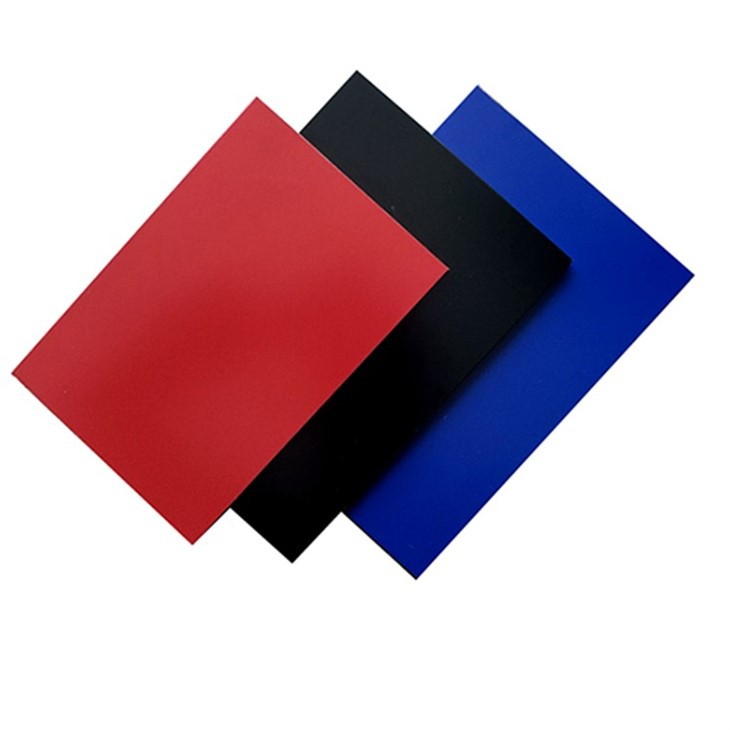

If you are in the market for high - quality Aluminum Composite Panel ACP Cladding Building Materials ACM or 2024 Hot Sell PET Marble Glossy Bamboo Charcoal/ Fiber Board, we are here to provide you with the best products and services. We welcome you to contact us for further discussion and procurement negotiations.
