Name: Bending And Slotting Aluminum-plastic Panel For Billboard/building Curtain Wall
Brand: ALUX
SKU: 204823442

Products Description Tel：+8618053971523

Aluminum composite panel, also known as ACP, is a building material that consists of two thin sheets of aluminum bonded to a non-aluminum core, typically made of polyethylene (PE), polyurethane (PUR), or fire-retardant (FR) mineral-filled materials. The feature of aluminum composite panel includes:

1. Lightweight: Aluminum composite panel is lightweight, making it easy and cost-effective to transport and install.

2. Durability: The aluminum sheets encasing the core are coated with various materials to enhance corrosion resistance, weather resistance, and scratch resistance.

3. Fire-resistance: The fire-retardant mineral-filled core of some aluminum composite panels gives them good fire-resistant properties. They can be used in building facade areas, where fire safety is required.

4. Versatility: Aluminum composite panel comes in different textures, colors, and finishes. It can be fabricated into various shapes and sizes like flat panels, curved panels, perforated panels, and custom shapes.

5. Design flexibility: Aluminum composite panel construction enables complicated shapes and curves to be designed and built, providing architects and builders the flexibility to achieve any desired design.

6. Low maintenance: Aluminum composite panel is non-corrosive and very easy to maintain, requiring less frequent painting and cleaning than other building materials.

7. Sound insulation: Aluminum composite panels with insulating materials provide excellent sound insulation properties.

8. Environmental friendly: Aluminum composite panel is an environmentally sustainable material that is 100% recyclable.

Specification

Name	Aluminum Composite Sheet/ ACP Sheet
Panel Thickness	2mm,3mm,4mm,5mm,6mm is avaliable
Aluminum Thickness	0.5mm,0.4mm,0.3mm,0.21mm,0.18mm,0.15mm, 0.12mm,0.1mm,0.06mm
Width	1220mm(regular),1250mm,1300mm,1500mm, 1550mm,1570mm,1575mm(Maximum)
Length	2440mm(regular),and tailored by customer’s offers,5800mm(Maximum)
Standard size	1220(Width)x2440(Length)x3mm(Thickness); 1250(Width)x2440(Length)x4mm(Thickness);
Surface Finish	Brushed, Mirror, PE Coated, PVDF Coated

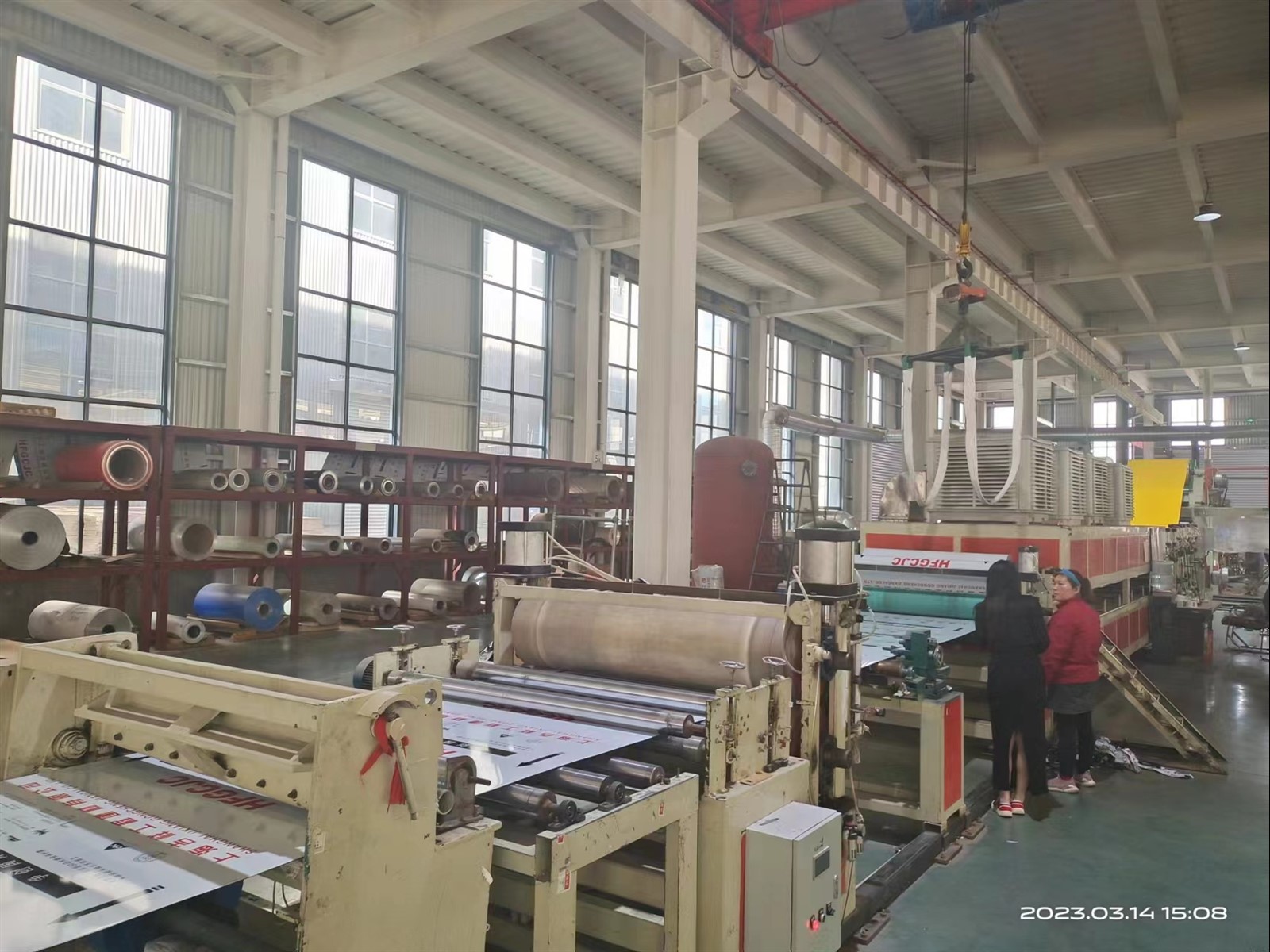

Factory Tour

Our Advantages

Quality assurance

Price advantage

Factory wholesale

Good service

Linyi Alux Building Materials Co., Ltd focus on Exterior wall PVDF coated panel and interior wall PE coated panel more than 10 years, ALUX has been aluminium composite material manufacturer and exporter for 8 years with rich international trading experience. Our top quality and popular brand ALUX aluminum composite panel sales to more than 40 countries.
We’re one of the world’s leading manufacturers of aluminum composite materials. Our ACP and Sign Board panels,wpc decorative materials have inspired new aesthetics and enabled new design possibilities over more than 10 years of use.
